element PipeNetworks

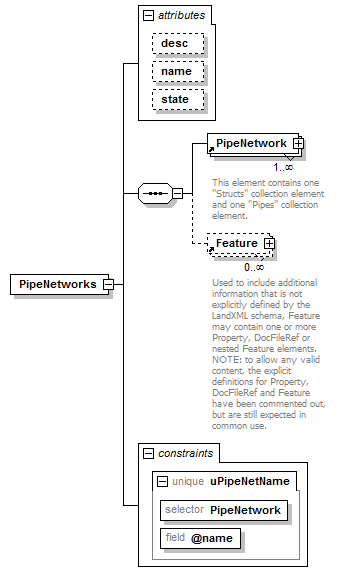

diagram LandXML-1.2Doc_p131.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children PipeNetwork Feature
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
namexs:string
statestateType
identity constraints
  Name  Refer  Selector  Field(s)
unique  uPipeNetName    PipeNetwork  @name
source <xs:element name="PipeNetworks">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="PipeNetwork" maxOccurs="unbounded"/>
      <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="desc" type="xs:string"/>
    <xs:attribute name="name" type="xs:string"/>
    <xs:attribute name="state" type="stateType"/>
  </xs:complexType>
  <xs:unique name="uPipeNetName">
    <xs:selector xpath="PipeNetwork"/>
    <xs:field xpath="@name"/>
  </xs:unique>
</xs:element>

attribute PipeNetworks/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute PipeNetworks/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute PipeNetworks/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>
