element InstrumentDetails

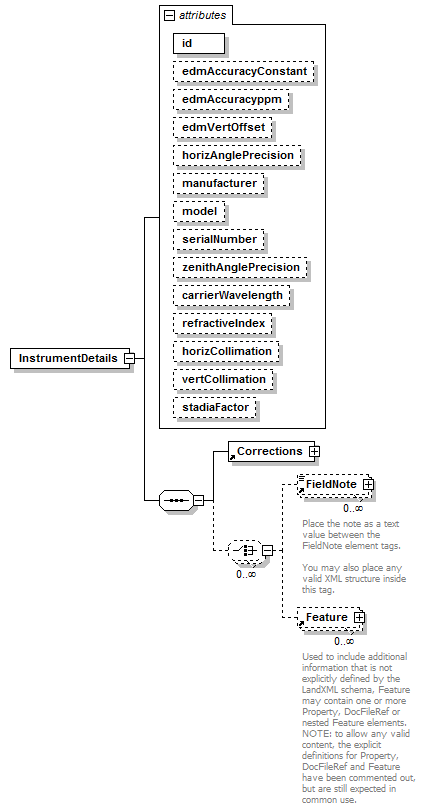

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Corrections FieldNote Feature
used by	element  Equipment
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         edmAccuracyConstant xs:double          edmAccuracyppm xs:double          edmVertOffset xs:double          horizAnglePrecision xs:double          manufacturer xs:string          model xs:string          serialNumber xs:string          zenithAnglePrecision xs:double          carrierWavelength xs:double          refractiveIndex xs:double          horizCollimation xs:double          vertCollimation xs:double          stadiaFactor xs:double
source	<xs:element name="InstrumentDetails">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Corrections"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID" use="required"/>     <xs:attribute name="edmAccuracyConstant" type="xs:double"/>     <xs:attribute name="edmAccuracyppm" type="xs:double"/>     <xs:attribute name="edmVertOffset" type="xs:double"/>     <xs:attribute name="horizAnglePrecision" type="xs:double"/>     <xs:attribute name="manufacturer" type="xs:string"/>     <xs:attribute name="model" type="xs:string"/>     <xs:attribute name="serialNumber" type="xs:string"/>     <xs:attribute name="zenithAnglePrecision" type="xs:double"/>     <xs:attribute name="carrierWavelength" type="xs:double"/>     <xs:attribute name="refractiveIndex" type="xs:double"/>     <xs:attribute name="horizCollimation" type="xs:double"/>     <xs:attribute name="vertCollimation" type="xs:double"/>     <xs:attribute name="stadiaFactor" type="xs:double"/>     <!-- In order to compute the atmospheric corrections correctly record the EDM instrument carrier wavelength (carrierWavelength) and the group refractive index for the instrument (refractiveIndex). -->     <!-- To allow for older style top mounted EDM's -->   </xs:complexType> </xs:element>

attribute InstrumentDetails/@id

type	xs:ID
properties	isRef  0 use  required
source	<xs:attribute name="id" type="xs:ID" use="required"/>

attribute InstrumentDetails/@edmAccuracyConstant

type	xs:double
properties	isRef  0
source	<xs:attribute name="edmAccuracyConstant" type="xs:double"/>

attribute InstrumentDetails/@edmAccuracyppm

type	xs:double
properties	isRef  0
source	<xs:attribute name="edmAccuracyppm" type="xs:double"/>

attribute InstrumentDetails/@edmVertOffset

type	xs:double
properties	isRef  0
source	<xs:attribute name="edmVertOffset" type="xs:double"/>

attribute InstrumentDetails/@horizAnglePrecision

type	xs:double
properties	isRef  0
source	<xs:attribute name="horizAnglePrecision" type="xs:double"/>

attribute InstrumentDetails/@manufacturer

type	xs:string
properties	isRef  0
source	<xs:attribute name="manufacturer" type="xs:string"/>

attribute InstrumentDetails/@model

type	xs:string
properties	isRef  0
source	<xs:attribute name="model" type="xs:string"/>

attribute InstrumentDetails/@serialNumber

type	xs:string
properties	isRef  0
source	<xs:attribute name="serialNumber" type="xs:string"/>

attribute InstrumentDetails/@zenithAnglePrecision

type	xs:double
properties	isRef  0
source	<xs:attribute name="zenithAnglePrecision" type="xs:double"/>

attribute InstrumentDetails/@carrierWavelength

type	xs:double
properties	isRef  0
source	<xs:attribute name="carrierWavelength" type="xs:double"/>

attribute InstrumentDetails/@refractiveIndex

type	xs:double
properties	isRef  0
source	<xs:attribute name="refractiveIndex" type="xs:double"/>

attribute InstrumentDetails/@horizCollimation

type	xs:double
properties	isRef  0
source	<xs:attribute name="horizCollimation" type="xs:double"/>

attribute InstrumentDetails/@vertCollimation

type	xs:double
properties	isRef  0
source	<xs:attribute name="vertCollimation" type="xs:double"/>

attribute InstrumentDetails/@stadiaFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="stadiaFactor" type="xs:double"/>
