element HazardRating

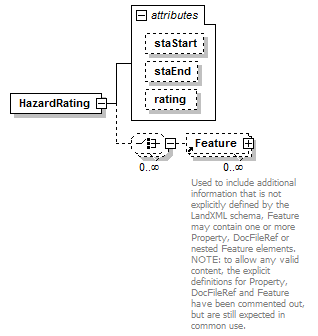

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Roadside
attributes	Name   Type   Use   Default   Fixed   annotation staStart station          staEnd station          rating xs:int
source	<xs:element name="HazardRating">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="rating" type="xs:int"/>     <!-- Unit of measure: INT. Roadside Hazard Rating - The roadside hazard rating for both sides of the road. The enumeration values are: 1, 2, 3, 4, 5, 6 and 7. -->   </xs:complexType> </xs:element>

attribute HazardRating/@staStart

type	station
properties	isRef  0
source	<xs:attribute name="staStart" type="station"/>

attribute HazardRating/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute HazardRating/@rating

type	xs:int
properties	isRef  0
source	<xs:attribute name="rating" type="xs:int"/>
