element Ditch

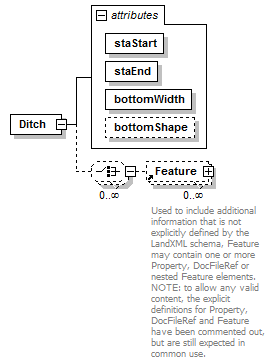

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Roadside
attributes	Name   Type   Use   Default   Fixed   annotation staStart station required         staEnd station required         bottomWidth xs:double required         bottomShape ditchBottomShape
source	<xs:element name="Ditch">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station" use="required"/>     <xs:attribute name="staEnd" type="station" use="required"/>     <xs:attribute name="bottomWidth" type="xs:double" use="required"/>     <xs:attribute name="bottomShape" type="ditchBottomShape"/>   </xs:complexType> </xs:element>

attribute Ditch/@staStart

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staStart" type="station" use="required"/>

attribute Ditch/@staEnd

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staEnd" type="station" use="required"/>

attribute Ditch/@bottomWidth

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="bottomWidth" type="xs:double" use="required"/>

attribute Ditch/@bottomShape

type	ditchBottomShape
properties	isRef  0
facets	enumeration  true-V enumeration  rounded-V enumeration  rounded-trapezoidal enumeration  flat-trapezoidal
source	<xs:attribute name="bottomShape" type="ditchBottomShape"/>
