element DesignHour

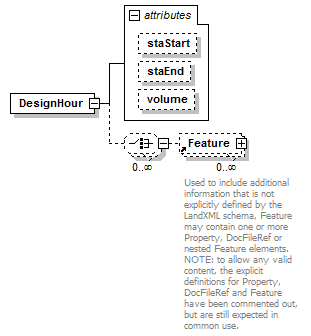

diagram LandXML-1.2Doc_p61.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element TrafficVolume
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
volumexs:double
source <xs:element name="DesignHour">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="volume" type="xs:double"/>

</xs:complexType>

<!-- Design Hour Volume - This item is the design hourly volume (DHV). The 30th highest volume of the year should be used as the DHV, which can be approximated as 15 percent of the average daily traffic (ADT). On two-lane rural highways, the DHV is the total traffic in both directions of travel. The unit of measure for this item is vehicles/hour. -->
</xs:element>

attribute DesignHour/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute DesignHour/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute DesignHour/@volume
type xs:double
properties
isRef 0
source <xs:attribute name="volume" type="xs:double"/>
