element DailyTrafficVolume

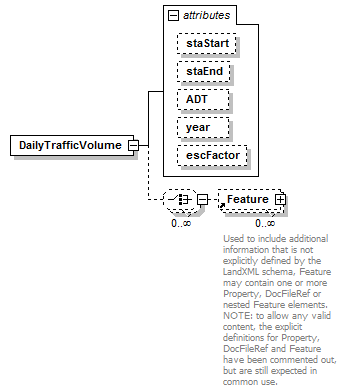

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  TrafficVolume
attributes	Name   Type   Use   Default   Fixed   annotation staStart station          staEnd station          ADT xs:double          year xs:date          escFactor xs:double
source	<xs:element name="DailyTrafficVolume">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="ADT" type="xs:double"/>     <xs:attribute name="year" type="xs:date"/>     <xs:attribute name="escFactor" type="xs:double"/>     <!-- ADT, the average daily traffic for the specified year. This item specifies the average daily traffic for the specified year. No value needs to be specified for this item. The unit of measure for this item is vehicles/day.  -->     <!-- escFactor is the subsequent year annual traffic volume escalation factor. This item specifies the annual percent increase (or decrease) in traffic volume for subsequent traffic volume years. No value needs to be specified for this item. The unit of measure for this item is percent %. -->   </xs:complexType> </xs:element>

attribute DailyTrafficVolume/@staStart

type	station
properties	isRef  0
source	<xs:attribute name="staStart" type="station"/>

attribute DailyTrafficVolume/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute DailyTrafficVolume/@ADT

type	xs:double
properties	isRef  0
source	<xs:attribute name="ADT" type="xs:double"/>

attribute DailyTrafficVolume/@year

type	xs:date
properties	isRef  0
source	<xs:attribute name="year" type="xs:date"/>

attribute DailyTrafficVolume/@escFactor

type	xs:double
properties	isRef  0
source	<xs:attribute name="escFactor" type="xs:double"/>
