element Contour

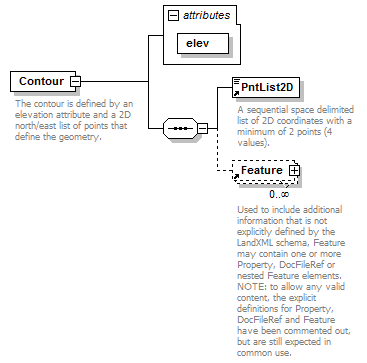

diagram LandXML-1.2Doc_p39.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children PntList2D Feature
used by
element Contours
attributes
Name  Type  Use  Default  Fixed  annotation
elevxs:doublerequired
annotation
documentation
The contour is defined by an elevation attribute and a 2D north/east list of points that define the geometry.
documentation
is identified by the "name" attribute.
source <xs:element name="Contour">

<xs:annotation>

<xs:documentation>The contour is defined by an elevation attribute and a 2D north/east list of points that define the geometry.</xs:documentation>

<xs:documentation>is identified by the "name" attribute.</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="PntList2D"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

<!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->

</xs:sequence>

<xs:attribute name="elev" type="xs:double" use="required"/>

</xs:complexType>
</xs:element>

attribute Contour/@elev
type xs:double
properties
isRef 0
use required
source <xs:attribute name="elev" type="xs:double" use="required"/>
