element ClimbLane

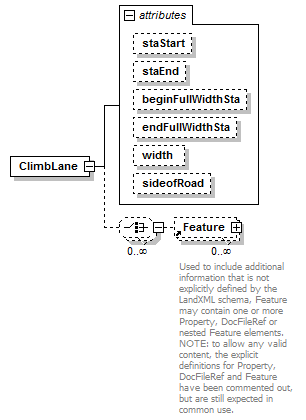

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Lanes
attributes	Name   Type   Use   Default   Fixed   annotation staStart station          staEnd station          beginFullWidthSta station          endFullWidthSta station          width xs:double          sideofRoad sideofRoadType
source	<xs:element name="ClimbLane">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="beginFullWidthSta" type="station"/>     <xs:attribute name="endFullWidthSta" type="station"/>     <xs:attribute name="width" type="xs:double"/>     <xs:attribute name="sideofRoad" type="sideofRoadType"/>   </xs:complexType> </xs:element>

attribute ClimbLane/@staStart

type	station
properties	isRef  0
source	<xs:attribute name="staStart" type="station"/>

attribute ClimbLane/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute ClimbLane/@beginFullWidthSta

type	station
properties	isRef  0
source	<xs:attribute name="beginFullWidthSta" type="station"/>

attribute ClimbLane/@endFullWidthSta

type	station
properties	isRef  0
source	<xs:attribute name="endFullWidthSta" type="station"/>

attribute ClimbLane/@width

type	xs:double
properties	isRef  0
source	<xs:attribute name="width" type="xs:double"/>

attribute ClimbLane/@sideofRoad

type	sideofRoadType
properties	isRef  0
facets	enumeration  right enumeration  left enumeration  both
source	<xs:attribute name="sideofRoad" type="sideofRoadType"/>
