element CgPoints

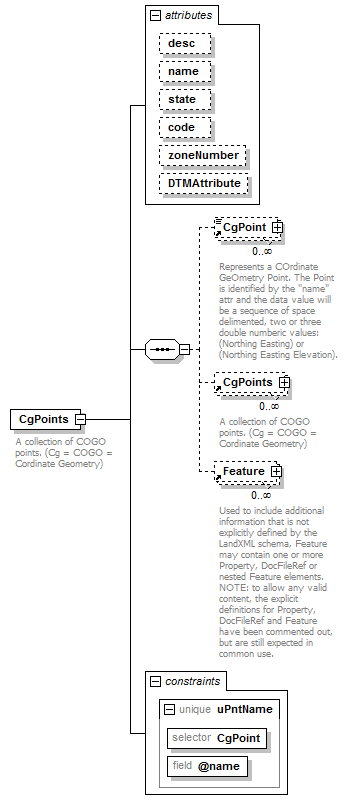

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CgPoint CgPoints Feature
used by	elements  CgPoints LandXML Survey
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          state stateType          code xs:string          zoneNumber zoneNumberType          DTMAttribute DTMAttributeType
identity constraints	Name   Refer   Selector   Field(s)   unique   uPntName      CgPoint   @name
annotation	documentation A collection of COGO points. (Cg = COGO = Cordinate Geometry)
source	<xs:element name="CgPoints">   <xs:annotation>     <xs:documentation>A collection of COGO points. (Cg = COGO = Cordinate Geometry)</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="CgPoint" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="CgPoints" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       <!-- Allow nested CgPoints collections -->     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="code" type="xs:string"/>     <xs:attribute name="zoneNumber" type="zoneNumberType"/>     <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>   </xs:complexType>   <xs:unique name="uPntName">     <xs:selector xpath="CgPoint"/>     <xs:field xpath="@name"/>   </xs:unique> </xs:element>

attribute CgPoints/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute CgPoints/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute CgPoints/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute CgPoints/@code

type	xs:string
properties	isRef  0
source	<xs:attribute name="code" type="xs:string"/>

attribute CgPoints/@zoneNumber

type	zoneNumberType
properties	isRef  0
facets	minInclusive  1 maxInclusive  99
source	<xs:attribute name="zoneNumber" type="zoneNumberType"/>

attribute CgPoints/@DTMAttribute

type	DTMAttributeType
properties	isRef  0
facets	enumeration  determinebyfeature enumeration  donotinclude enumeration  spot enumeration  spotandbreak enumeration  void enumeration  drapevoid enumeration  breakvoid enumeration  island enumeration  boundary enumeration  contour enumeration  feature enumeration  ground enumeration  xsection enumeration  user
source	<xs:attribute name="DTMAttribute" type="DTMAttributeType"/>
