element Boundary

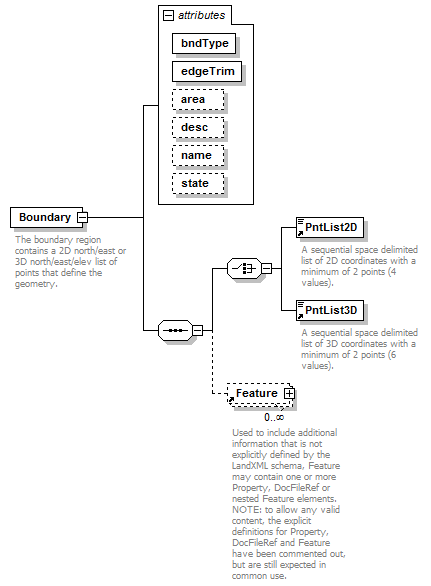

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PntList2D PntList3D Feature
used by	element  Boundaries
attributes	Name   Type   Use   Default   Fixed   annotation bndType surfBndType required         edgeTrim xs:boolean required         area xs:double          desc xs:string          name xs:string          state stateType
annotation	documentation The boundary region contains a 2D north/east or 3D north/east/elev list of points that define the geometry. documentation is identified by the "name" attribute. documentation If the "edgeTrim" attribute is true the faces are trimmed at the boundary edge, otherwise faces are not trimmed documentation and must exist entirely within the boundary.
source	<xs:element name="Boundary">   <xs:annotation>     <xs:documentation>The boundary region contains a 2D north/east or 3D north/east/elev list of points that define the geometry.</xs:documentation>     <xs:documentation>is identified by the "name" attribute.</xs:documentation>     <xs:documentation>If the "edgeTrim" attribute is true the faces are trimmed at the boundary edge, otherwise faces are not trimmed</xs:documentation>     <xs:documentation>and must exist entirely within the boundary.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element ref="PntList2D"/>         <xs:element ref="PntList3D"/>         <!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="bndType" type="surfBndType" use="required"/>     <xs:attribute name="edgeTrim" type="xs:boolean" use="required"/>     <xs:attribute name="area" type="xs:double"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Boundary/@bndType

type	surfBndType
properties	isRef  0 use  required
facets	enumeration  outer enumeration  void enumeration  island
source	<xs:attribute name="bndType" type="surfBndType" use="required"/>

attribute Boundary/@edgeTrim

type	xs:boolean
properties	isRef  0 use  required
source	<xs:attribute name="edgeTrim" type="xs:boolean" use="required"/>

attribute Boundary/@area

type	xs:double
properties	isRef  0
source	<xs:attribute name="area" type="xs:double"/>

attribute Boundary/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Boundary/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Boundary/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
