element BikeFacilities

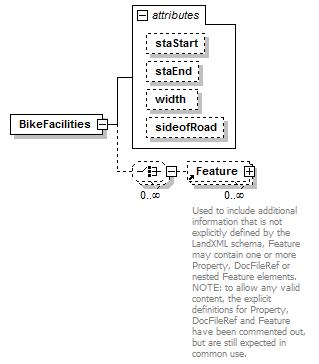

diagram LandXML-1.2Doc_p18.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Roadside
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
widthxs:double
sideofRoadsideofRoadType
source <xs:element name="BikeFacilities">
  <xs:complexType>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>
    </xs:choice>
    <xs:attribute name="staStart" type="station"/>
    <xs:attribute name="staEnd" type="station"/>
    <xs:attribute name="width" type="xs:double"/>
    <xs:attribute name="sideofRoad" type="sideofRoadType"/>
  </xs:complexType>
</xs:element>

attribute BikeFacilities/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute BikeFacilities/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute BikeFacilities/@width
type xs:double
properties
isRef 0
source <xs:attribute name="width" type="xs:double"/>

attribute BikeFacilities/@sideofRoad
type sideofRoadType
properties
isRef 0
facets
enumeration right
enumeration left
enumeration both
source <xs:attribute name="sideofRoad" type="sideofRoadType"/>
