element Application

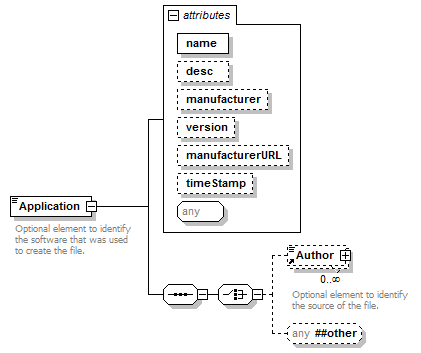

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex mixed  true
children	Author
used by	element  LandXML
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         desc xs:string          manufacturer xs:string          version xs:string          manufacturerURL xs:string          timeStamp xs:dateTime optional
annotation	documentation Optional element to identify the software that was used to create the file.
source	<xs:element name="Application">   <xs:annotation>     <xs:documentation>Optional element to identify the software that was used to create the file.</xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:sequence>       <xs:choice>         <xs:element ref="Author" minOccurs="0" maxOccurs="unbounded"/>         <xs:any namespace="##other" processContents="skip" minOccurs="0"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="manufacturer" type="xs:string"/>     <xs:attribute name="version" type="xs:string"/>     <xs:attribute name="manufacturerURL" type="xs:string"/>     <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>     <xs:anyAttribute/>   </xs:complexType> </xs:element>

attribute Application/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Application/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Application/@manufacturer

type	xs:string
properties	isRef  0
source	<xs:attribute name="manufacturer" type="xs:string"/>

attribute Application/@version

type	xs:string
properties	isRef  0
source	<xs:attribute name="version" type="xs:string"/>

attribute Application/@manufacturerURL

type	xs:string
properties	isRef  0
source	<xs:attribute name="manufacturerURL" type="xs:string"/>

attribute Application/@timeStamp

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>
